Nexus Soft Armour is manufactured in the United Kingdom and utilises innovative new technologies designed to enhance the strength of the aramid base yarn providing superior ballistic performance and trauma attenuation. The technology we use reduces the need to extensively stitch the individual fabric layers together which results in good levels of flexibility and a lower thickness of approximately 8mm.

The armour protective materials are heat sealed inside a protective cover for additional water repellence and protection against sunlight increasing the lifespan of the product.

Ballistic Protection

NIJ IIIA Protection in accordance to the NIJ Standard 0101.06.

Ammunition Type:

Test Ammunition	Nominal Bullet Mass	Required Bullet Velocity
9mm FMJRN .40 S&W FMJ	8.0g (124gr) 11.7g (180gr)	373m/s ± 9.1m/s (1225ft/s ± 30ft/s 352m/s ± 9.1m/s (1155ft/s ± 30ft/s
9mm FMJRN .357Mag JSP	8.0g (124gr) 10.2g (158gr)	398m/s ± 9.1m/s (1305ft/s ± 30ft/s 408m/s ± 9.1m/s (1340ft/s ± 30ft/s
.357 SIG FMJ FN .44 Mag SJHP	8.1g (125gr) 15.g (240gr)	448m/s ± 9.1m/s (1470ft/s ± 30ft/s 430m/s ± 9.1m/s (1410ft/s ± 30ft/s

The armour will also defeat commonly used European Style Ammunition: 9 mm QD-PEP II/s: 510 m/s (1675 ft/s) and 9mm Action 4: 480 m/s (1575 ft/s)

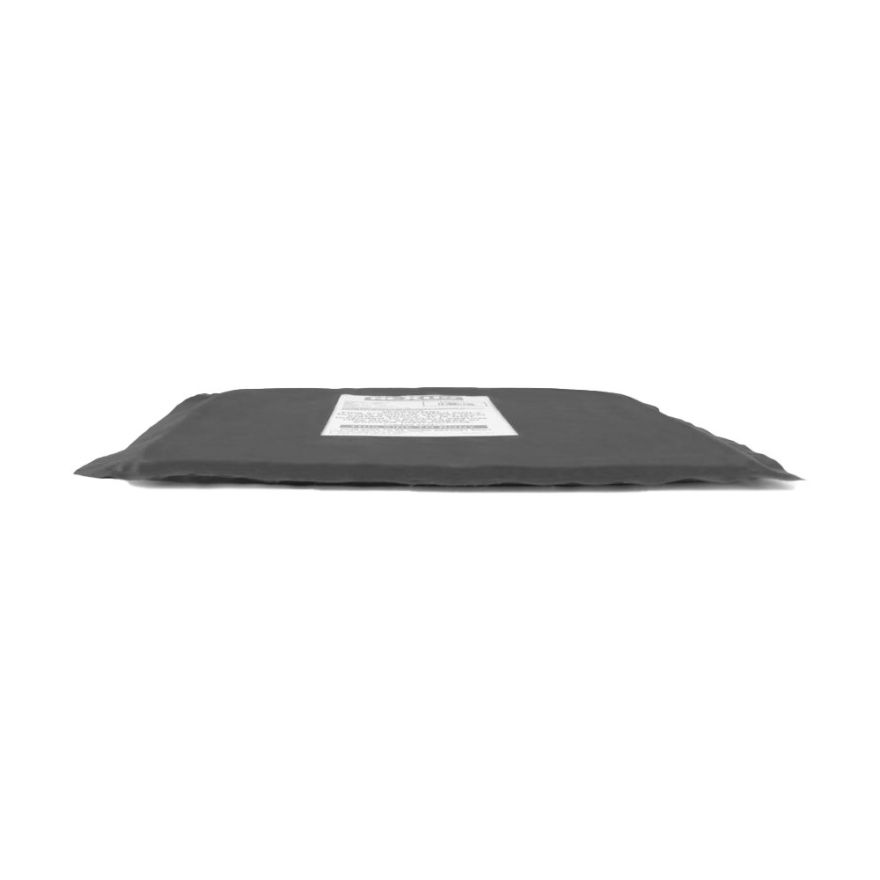

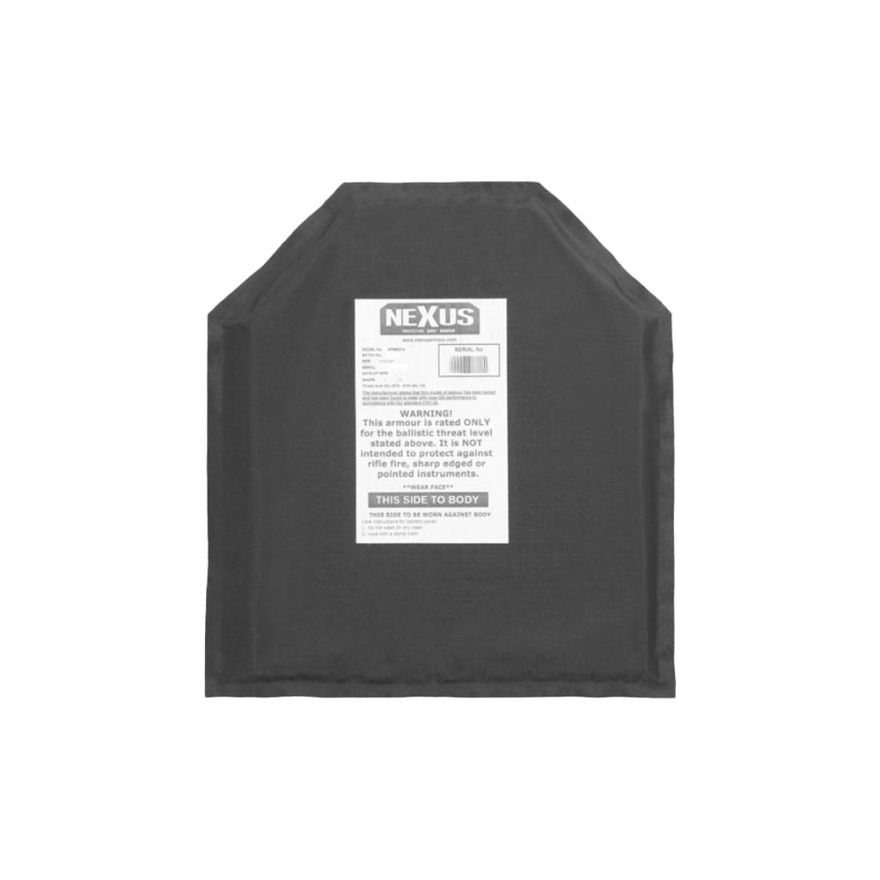

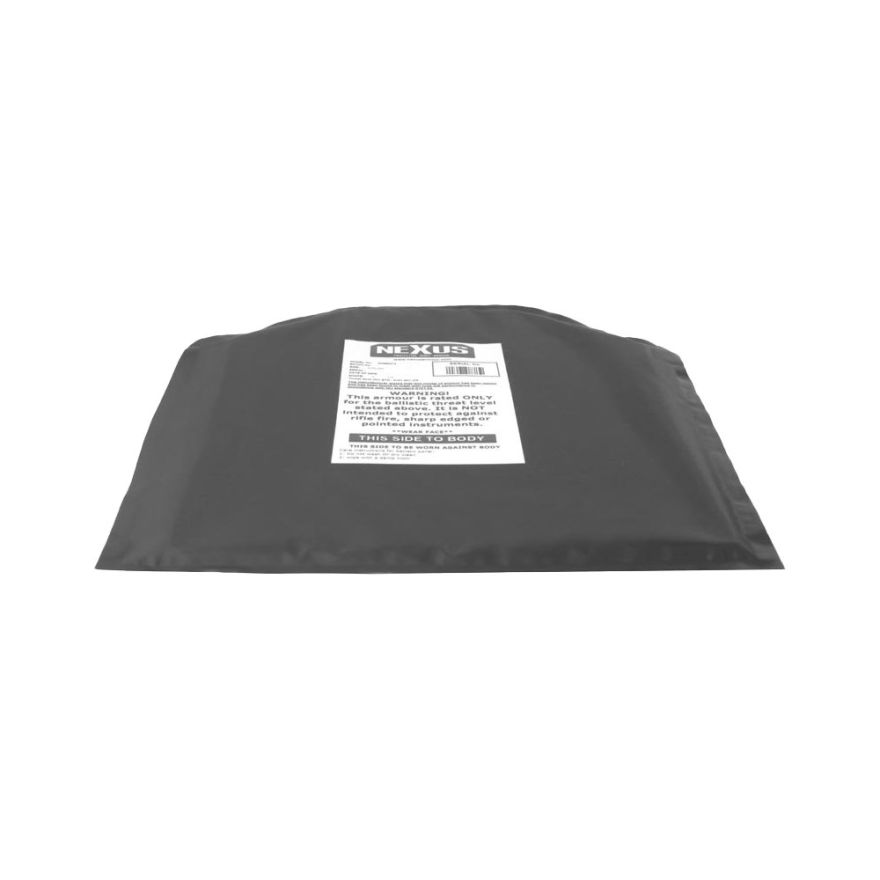

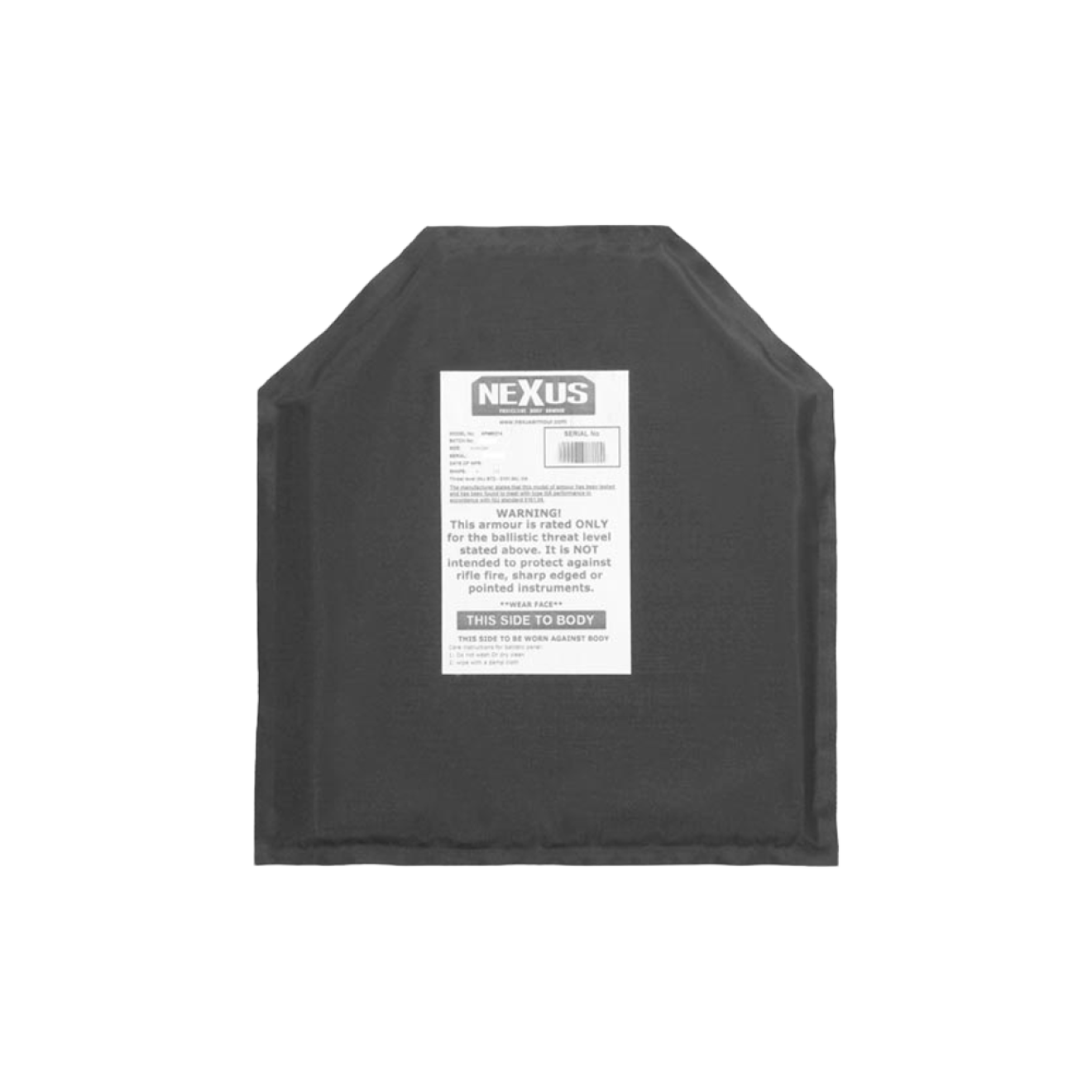

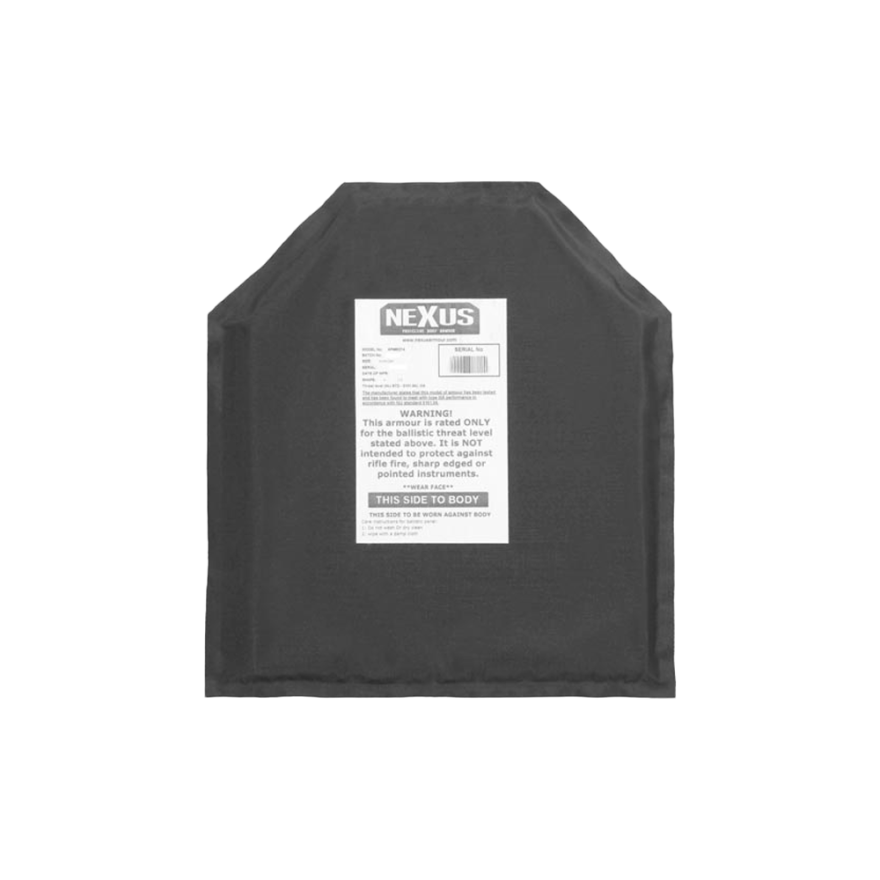

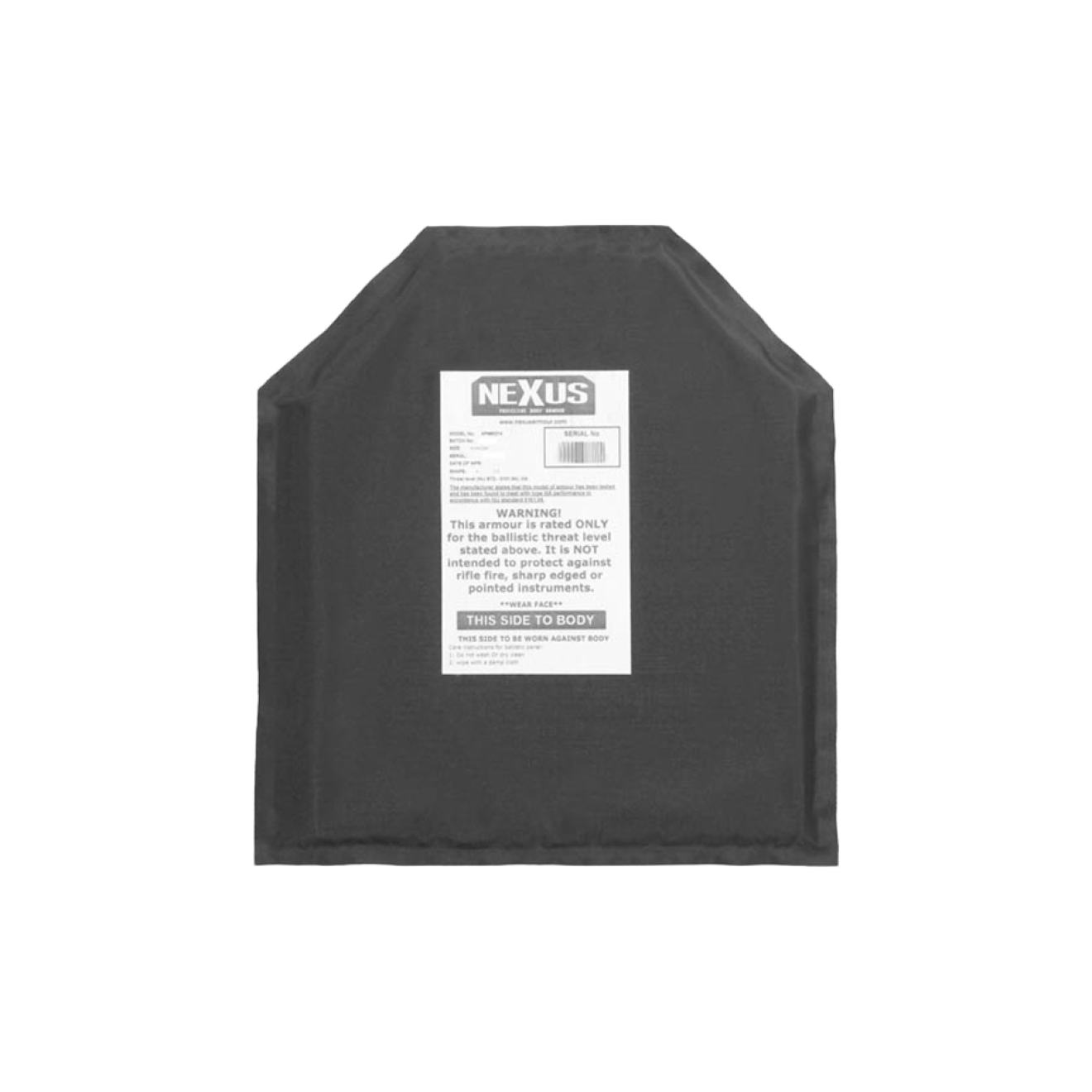

Nexus NIJ IIIa 10" x 12" Single Soft Armour Insert Plate Backer
